Den ‘o’ Alyth Geotour

A walk through Old Red Sandstone

This geotour, which will take you around 45 minutes to an hour, starts at the large car park NO237488 and then follows the path signposted down to the Den of Alyth/Playpark.

Details of what can be viewed along the route can be found below.

On your left are the cliffs of the old Alyth sandstone quarries. The sandstone is dull reddish brown, fine to medium grained and plane bedded, flaggy in places, and was an excellent building stone.
-3-24481
56-62377

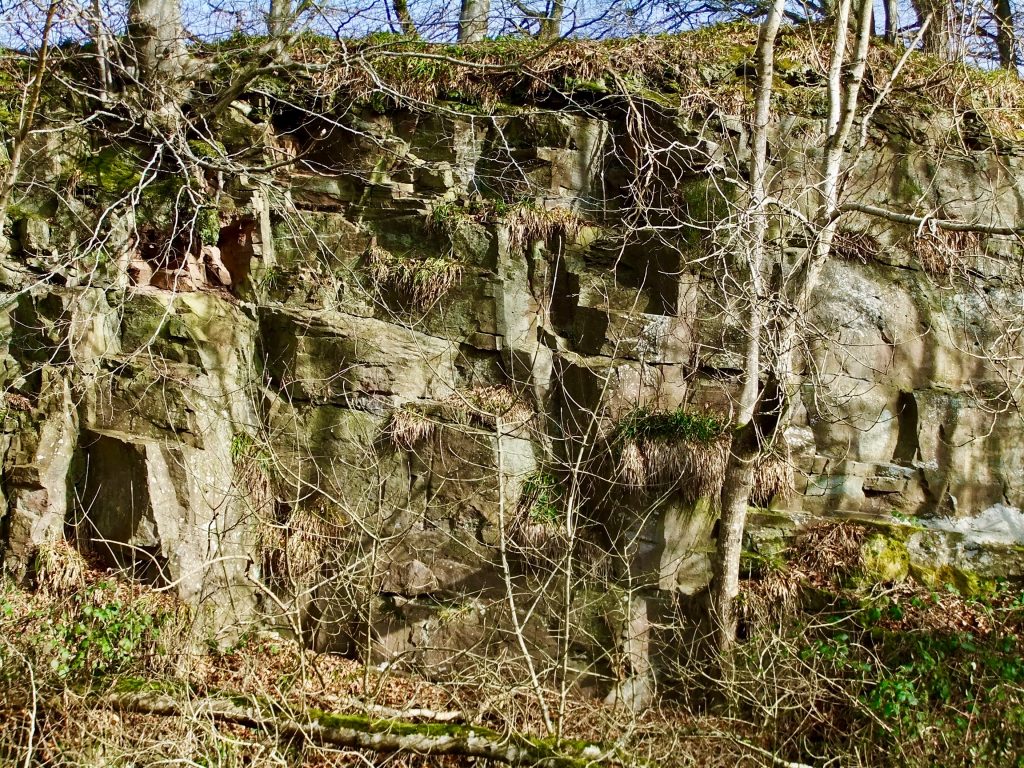

Remains of one of the quarries in the Den 'o' Alyth, photo Carol Pudsey

The layers or beds dip southward at about 10 degrees. These sandstones were deposited in a relatively low-energy environment.

Close up of the red sandstone in the Den 'o' Alyth, photo Carol Pudsey

The two boulders in the play area are glacial erratics: granite and hornblende schist.
-3-24376
56-62372

Glacial erratics in the play area of the Den 'o' Alyth, photo Carol Pudsey

Now walk back upstream, noting that the same sandstones form the river cliffs opposite. Beyond a slight rise in the path at NO23474867 a band of dark grey rock crosses the burn and both sides of the Den have been quarried away. This is a dyke of basalt (locally known as whinstone). It was intruded into the sandstone as a near-vertical sheet.

Columnar jointing can be clearly seen when the river level is low.
-3-24849
56-62370

Basalt dyke in the burn in the Den 'o' Alyth, photo Carol Pudsey

The photo below, shows the quarry on the far (south) bank. The quarried stone does not appear to have been used for building in Alyth, so probably went for aggregate.

Columnar jointing of Basalt in the Den 'o' Alyth, photo Carol Pudsey

At the footbridge NO23354876 there are some more granite and schist boulders in the burn. 20m farther on by some railings there is an outcrop of sandstone with pebbly sandstone lenses.
-3-25149
56-62448

Sandstone with pebbly sandstone lenses, Den 'o' Alyth, photo Carol Pudsey

The pebbles are of volcanic rocks and vein quartz with very few schists. They are rounded and mostly small (<5cm). The poorly sorted beds of pebbly sandstone were deposited in high-energy flood events.Continuing upstream, the rocks in the bed of the burn and the cliffs opposite dip gently SSE ; older rocks come to the surface father west. Cliff exposure stops at the next footbridge and just before it is another (very mossy) granite erratic at NO23084878.
-3-25555
56-62456

Pebbles of volcanic rock and vein quartz in the Den 'o' Alyth, photo Carol Pudsey

Return along the den or take one of the higher paths back to the car park.

Source: Carol Pudsey
